레벨풋 Level Foot > Combi-Pad & Foot Base
AFB
제품 상세정보

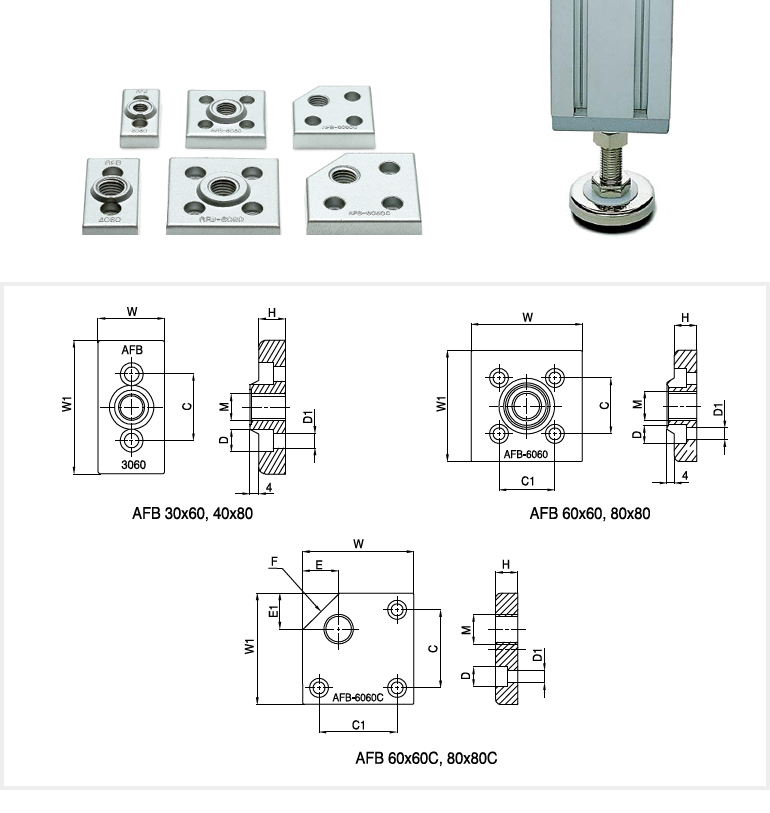

| MODEL | DIMENSIONS (mm) | 재질 Materials | 허용하중 (kg/4EA) | 표면처리 Treatments | ||||||||||
| W | W1 | C | C1 | M | D | D1 | H | E | E1 | F | ||||
| AFB-3060 | 30 | 60 | 30 | 0 | M12, M16 | Ø10.5 | Ø7 | 12 | - | - | - | 알루미늄(AL) | 2,000 | 액체도장(Liquid coating) |
| AFB-4080 | 40 | 80 | 40 | 0 | M12, M16, M20 | Ø14 | Ø9 | 13 | - | - | - | 알루미늄(AL) | 3,000 | 액체도장(Liquid coating) |
| AFB-6060 | 60 | 60 | 30 | 30 | M12, M16, M20 | Ø10.5 | Ø7 | 12 | - | - | - | 알루미늄(AL) | 2,500 | 액체도장(Liquid coating) |
| AFB-8080 | 80 | 80 | 40 | 40 | M16, M20 | Ø14 | Ø9 | 13 | - | - | - | 알루미늄(AL) | 3,000 | 액체도장(Liquid coating) |
| AFB-6060C | 60 | 60 | 30 | 30 | M12, M16 | Ø10.5 | Ø7 | 15 | 20 | 20 | C20 | 알루미늄(AL) | 2,500 | 액체도장(Liquid coating) |
| AFB-8080C | 80 | 80 | 40 | 40 | M16, M20 | Ø14 | Ø9 | 17 | 28 | 28 | C28 | 알루미늄(AL) | 3,000 | 액체도장(Liquid coating) |
