캐리마스터 Carrymaster > ACM

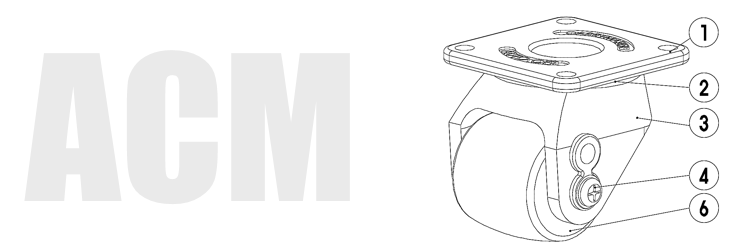

ACM-600F
제품 상세정보
| MODEL |  |  |  |  |  |  | ||||||||
| Kg | 1EA | 4EA | Ø | W | F | F1 | Hole | H | L | O | TAP | X | Y | |
| ACM-600F | 0.98 | 540 | 1600 | Ø60 | 55 | 90×90 | 70×70 | Ø9.5 | 90 | 100 | 25 | |||
| ACM-600S | 0.86 | 540 | 1600 | Ø60 | 55 | 90 | 92 | 25 | M16 | 70 | 64.5 | |||
| ACM-600FB | 0.98 | 540 | 1600 | Ø60 | 55 | 90×90 | 70×70 | Ø9.5 | 90 | 100 | 25 | |||
| ACM-600SB | 0.98 | 540 | 1600 | Ø60 | 55 | 90 | 92 | 25 | M16 | 70 | 64.5 | |||
| ACMT-600F | 0.92 | 540 | 1600 | Ø50 | 26×2 | 90×90 | 70×70 | Ø9.5 | 85 | 95 | 25 | |||
| ACMT-600S | 0.78 | 540 | 1600 | Ø50 | 26×2 | 85 | 87 | 25 | M16 | 70 | 64.5 | |||
| ACM-800F | 1.20 | 670 | 2000 | Ø75 | 55 | 90×90 | 70×70 | Ø9.5 | 108 | 108 | 25 | |||
| ACM-800S | 1.06 | 670 | 2000 | Ø75 | 55 | 108 | 95 | 25 | M16 | 70 | 64.5 | |||
| ACM-800FB | 1.20 | 670 | 2000 | Ø75 | 55 | 90×90 | 70×70 | Ø9.5 | 108 | 108 | 25 | |||
| ACM-800SB | 1.20 | 670 | 2000 | Ø75 | 55 | 108 | 108 | 25 | M16 | 70 | 64.5 | |||
| ACMT-800F | 1.06 | 670 | 2000 | Ø72 | 26×2 | 90×90 | 70×70 | Ø9.5 | 106 | 106 | 25 | |||
| ACMT-800S | 0.92 | 670 | 2000 | Ø72 | 26×2 | 106 | 98 | 25 | M16 | 70 | 64.5 | |||
 |
 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
