레벨풋 Level Foot > 고하중(TR)
LTH
제품 상세정보

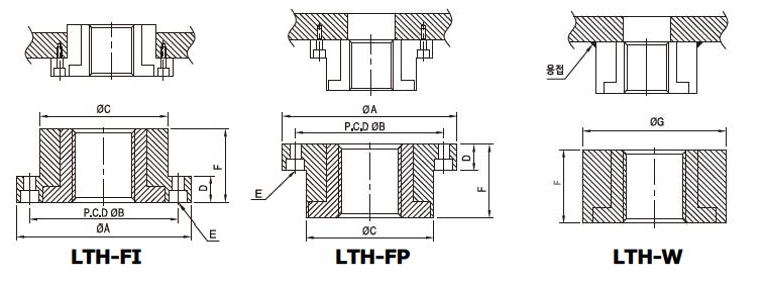

| MODEL | Size | A | B | C | D | E | F | G |
| LTH-42 | Tr42×6P | Ø147 | Ø122 | Ø102 | 25 | 4-M10 C Bore | 50 | Ø117 |
| LTH-52 | Tr52×7P | Ø157 | Ø132 | Ø112 | 25 | 4-M10 C Bore | 60 | Ø127 |
| LTH-60 | Tr60×7P | Ø167 | Ø142 | Ø122 | 25 | 6-M10 C Bore | 70 | Ø137 |
OPTION ■ HOUSING MATERIAL : SM45C, SUS304 ■ HOUSING PLATING SPECIFICATION : Zn, Electroless-Ni, Non plating | ||||||||||||||
